# REPRESENTING PROPORTIONAL RELATIONSHIPS WITH GRAPHS WORKSHEET

## About "Representing proportional relationships with graphs worksheet"

Representing proportional relationships with graphs worksheet :

Worksheet on representing proportional relationships with graphs is much useful to the students who would like to practice problems on finding proportional relationships between two quantities.

## Representing proportional relationships with graphs worksheet - Questions

1.  The graph shows the relationship between the weight of an object on the Moon and its weight on Earth. Write an equation for this relationship.

2.  In 1870, the French writer Jules Verne published 20,000 Leagues Under the Sea, one of the most popular science fiction novels ever written. The graph shows the relationship between the distance in leagues and distance in miles. Write an equation for this relationship.

3.  The graph shows the relationship between the amount of time that a backpacker hikes and the distance traveled.  Write an equation for this relationship.

## Representing proportional relationships with graphs worksheet - Answers

Question 1 :

The graph shows the relationship between the weight of an object on the Moon and its weight on Earth. Write an equation for this relationship.

Step 1 :

Make a table relating amount earned to number of hours.

Step 2 :

Find the constant of proportionality.

Moon weight : Earth weight

1 : 6  =  1  : 6

2 : 12  =  1  : 6

3 : 18  =  1  : 6

5 : 30  =  1  : 6

The constant of proportionality is 1 : 6 or 1/6.

Step 3 :

Write an equation.

Let x represent weight on Earth.

Let y represent weight on the Moon.

The equation is y  =  kx

Replace k with 1/6 in the above equation.

y  =  (1/6)x

y  =  x/6

Question 2 :

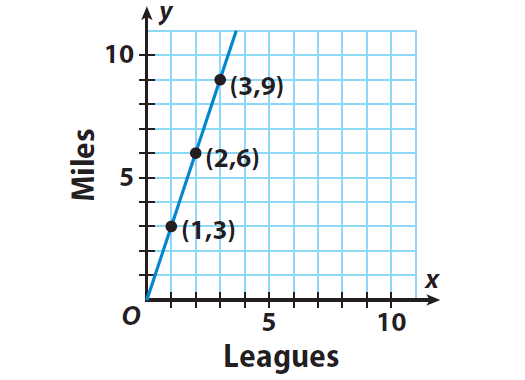

In 1870, the French writer Jules Verne published 20,000 Leagues Under the Sea, one of the most popular science fiction novels ever written. The graph shows the relationship between the distance in leagues and distance in miles. Write an equation for this relationship.

Step 1 :

Make a table relating distance in leagues and distance in miles.

Step 2 :

Find the constant of proportionality.

Leagues : Miles

3 : 1  =  3 : 1

6 : 2  =  3 : 1

18 : 6  =  3 : 1

36 : 12  =  3 : 1

60,000 : 20,000  =  3 : 1

The constant of proportionality is 3 : 1 or 3/1 or 3.

Step 3 :

Write an equation.

Let x represent the distance in leagues.

Let y represent the distance in miles.

The equation is y  =  kx

Replace k with 3 in the above equation.

y  =  3x

Question 3 :

The graph shows the relationship between the amount of time that a backpacker hikes and the distance traveled.  Write an equation for this relationship.

Step 1 :

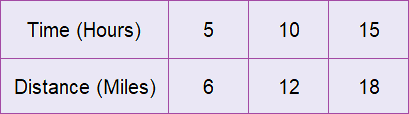

Make a table relating distance and time.

Step 2 :

Find the constant of proportionality.

Distance : Time

6 : 5  =  6 : 5

12 : 10  =  6 : 5

18 : 15  =  6 : 5

The constant of proportionality is 6 : 5 or 6/5.

Step 3 :

Write an equation.

Let x represent time in hours.

Let y represent the distance in miles.

The equation is y  =  kx

Replace k with 6/5 in the above equation.

y  =  (6/5)x

After having gone through the stuff given above, we hope that the students would have understood "Representing proportional relationships with graphs worksheet".
