# PARABOLA ELLIPSE AND HYPERBOLA WORKSHEET

Problem 1 :

A rod of length 1 2. m moves with its ends always touching the coordinate axes. The locus of a point P on the rod, which is 0 3. m from the end in contact with x -axis is an ellipse. Find the eccentricity.

Problem 2 :

Assume that water issuing from the end of a horizontal pipe, 7 5 . m above the ground, describes a parabolic path. The vertex of the parabolic path is at the end of the pipe. At a position 2.5 m below the line of the pipe, the flow of water has curved outward 3 m beyond the vertical line through the end of the pipe. How far beyond this vertical line will the water strike the ground ?

Problem 3 :

On lighting a rocket cracker it gets projected in a parabolic path and reaches a maximum height of 4 m when it is 6 m away from the point of projection. Finally it reaches the ground 12 m away from the starting point. Find the angle of projection.

Problem 4 :

Points A and B are 10 km apart and it is determined from the sound of an explosion heard at those points at different times that the location of the explosion is 6 km closer to A than B . Show that the location of the explosion is restricted to a particular curve and find an equation of it. ## Solutions

Problem 1 :

A rod of length 1 2. m moves with its ends always touching the coordinate axes. The locus of a point P on the rod, which is 0 3. m from the end in contact with x -axis is an ellipse. Find the eccentricity.

Solution : Let AB be the rod and P(x1, y1) be a point on the ladder such that AP = 6m. Draw PD perpendicular to x-axis and

PC perpendicular to y-axis.

Clearly the triangles ADP and PCB are similar.

PC/DA  =  PB/AP =  BC/PD

x1/DA  =  0.9/0.3  =  BC/y1

DA = x1/3, BC  =  3y1

OA  =  OD + DA  ==> x1 + (x1/3)  ==>  4x1/3

OB  =  OC + BC  ==> y1 + 3y1  ==>  4y1

OA2 + OB2  =  AB2

(4x1/3)2 + (4y1)2  =  (1.2)2

(16/9)x12 + 16y12  =  1.44

16x12 + 144y12  =  1.44(9)

16x12 + 144y12  =  12.96

x12/(12.96/16) + y12/(12.96/144)  =  12.96/12.96

(x12/0.81) + (y12/0.09)  =  1

a2  =  81/100, b2  = 9/100

c2 = a2 - b2

c2 = (81 - 9)/100

c2 = 72/100

c  =  6√2/10

e = c/a  =   (6√2/10) / (9/10)

e  =  2√2/3

Problem 2 :

Assume that water issuing from the end of a horizontal pipe, 7 5 . m above the ground, describes a parabolic path. The vertex of the parabolic path is at the end of the pipe. At a position 2.5 m below the line of the pipe, the flow of water has curved outward 3 m beyond the vertical line through the end of the pipe. How far beyond this vertical line will the water strike the ground ?

Solution : As per the given information, we can take the parabola as open downwards

x2 = − 4ay

Let P be the point on the flow path, 2.5m below the line of the pipe and 3 m beyond the vertical line through the end of the pipe.

P is (3, − 2.5)

Thus 9 = − 4a (− 2.5)

a  =  9/10

The equation of the parabola is x2 = − 4 × (9/10) y

Let x1 be the distance between the bottom of the vertical line on the ground from the pipe end and the point on which the water touches the ground. But the height of the pipe from the ground is 7.5 m

The point (x1, − 7.5) lies on the parabola

x12 = − 4 × (9/10) × (− 7.5) = 27

x1 = 3 3

The water strikes the ground 3 3 m beyond the vertical line.

Problem 3 :

On lighting a rocket cracker it gets projected in a parabolic path and reaches a maximum height of 4 m when it is 6 m away from the point of projection. Finally it reaches the ground 12 m away from the starting point. Find the angle of projection.

Solution : The equation of the parabola is of the form x2 = − 4ay (by taking the vertex at

the origin). It passes through (6, − 4)

36 = 16a

a = 9/4

The equation is x2 = − 9y

Find the slope at (− 6, − 4)

Differentiating (1) with respect to x, we get

2x = − 9 (dy/dx)

dy/dx = − (2x/9)

Slope at (− 6, − 4),

(dy/dx) = − (2/9) × − 6 = 4/3

tan θ = 4/3

θ = tan−1 (4/3)

The angle of projection is tan−1 (4/3).

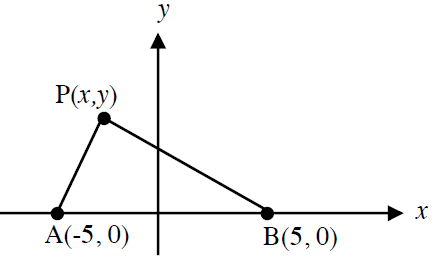

Problem 4 :

Points A and B are 10 km apart and it is determined from the sound of an explosion heard at those points at different times that the location of the explosion is 6 km closer to A than B . Show that the location of the explosion is restricted to a particular curve and find an equation of it.

Solution : PB − PA = 6

[(x − 5)2 + y2] − [(x + 5)2 + y2]  =  6

[(x − 5)2 + y2]  =  6 + [(x + 5)2 + y2]

Taking squares on both sides, we get

[(x − 5)2 + y2]  =  36 + [(x + 5)2 + y2] + 12[(x + 5)2 + y2]

x2-10x+25+y2 = 36+x2+25+10x+y+ 12[(x + 5)2 + y2]

-20x - 36  =  12[(x + 5)2 + y2]

-(5x - 9)/3  =  √[(x + 5)2 + y2]

Again taking squares on both sides,

25x2 + 81 + 90x  =  9[(x + 5)2 + y2]

25x2 + 81 + 90x  =  9[x2 + 10x + 25 + y2]

25x2 - 9x2 + 90x - 90x - 9y2 + 81 - 225  =  0

16x2 - 9y2 - 64  =  0

16x2 - 9y2  =  64

(x2/9) - (y2/16)  =  1

So, it is hyperbola. Apart from the stuff given in this section if you need any other stuff in math, please use our google custom search here.
