# HOW TO DRAW FREQUENCY POLYGON

How to Draw Frequency Polygon :

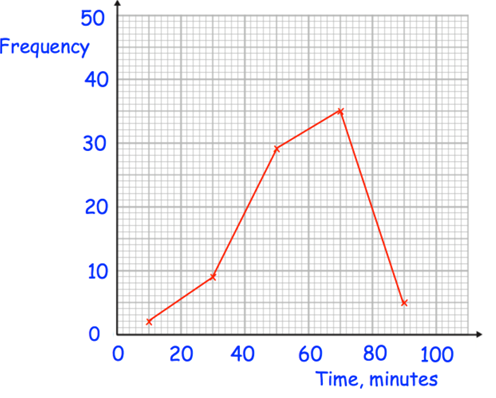

Frequency Polygon is another method of representing frequency distribution

graphically.

Draw a histogram for the given continuous data. Mark the middle points of the

tops of adjacent rectangles. If we join these middle points successively by line segment, we get a polygon. This polygon is called the frequency polygon. It is customary to bring the ends of the polygon down to base level by assuming a lower class of a frequency and highest class of a frequency.

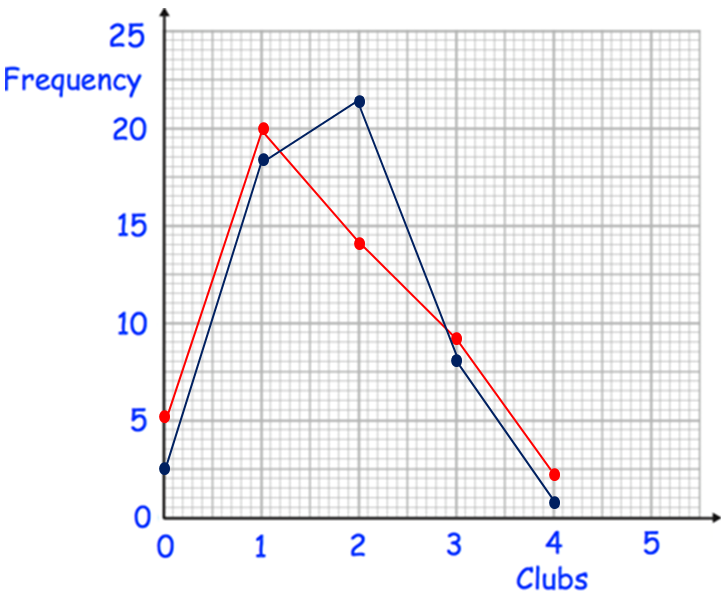

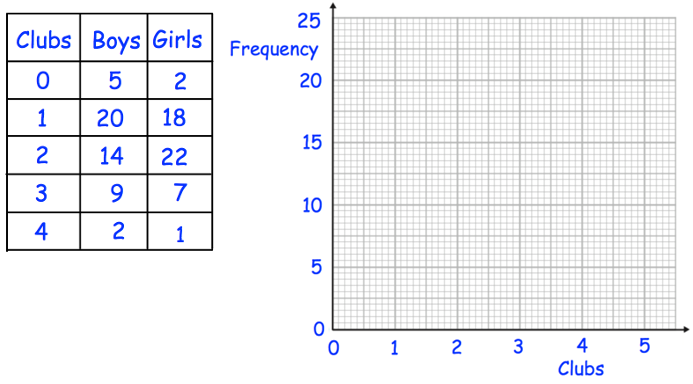

Frequency Polygon can be constructed in two ways:

(i) Using histogram

(ii) Without using histogram.

## Construction of Frequency Polygon with Histogram - Steps

Step 1 :

Obtain the frequency distribution from the given data and draw a histogram.

Step 2 :

Join the mid points of the tops of adjacent rectangles of the histogram by means of line segments.

Step 3 :

Obtain the mid points of two assumed class intervals of zero frequency, one adjacent to the first bar on its left and another adjacent to the last bar on its right. These class intervals are known as imagined class interval.

Step 4 :

Complete the polygon by joining the mid points of first and the last class intervals to the mid point of the imagined class intervals adjacent to them.

## Construction of Frequency Polygons - Examples

Example 1 :

Draw a frequency polygon imposed on the histogram for the following distribution

 Class intervals10 - 2020 - 3030 - 4040 - 50 50 - 6060 - 7070 - 8080 - 90 Frequency46810121475

Solution :

Take the class-intervals along the X-axis and frequencies along the Y-axis with appropriate scale as shown figure given below.

Draw a histogram for the given data. Now we have to mark the mid points of the upper sides of the consecutive rectangles. We also mark the midpoints of the assumed class intervals 0-10 and 90-100.

The mid points are joined with the help of a ruler. The ends of the polygon are joined with the mid points of 0-10 and 90-100.

Now, we get the frequency polygon.

Scale :

X - axis  1 cm  =  10 units

Y - axis 1 cm  =  2 units

Example 2 :

Draw a frequency polygon of the following data using histogram

 Class intervals0 - 1010 - 2020 - 3030 - 40 40 - 5050 - 60 Frequency5102516128

Solution :

Mark the class intervals along the X-axis and the frequencies along the Y-axis with appropriate scale shown in figure given below.

Draw a histogram for the given data. Now, mark the mid points of the upper sides of the consecutive rectangles. Also we take the imagined class interval (-10) - 0 and 60 - 70. The mid points are joined with the help of a ruler. The ends of the polygon are joined with the mid points of the imagined class intervals (-10)-0 and 60 - 70. Now we get the frequency polygon.

Sometimes imagined class intervals do not exist. For example, in case of marks obtained by the students in a test, we cannot go below zero and beyond maximum marks on the two sides.

In such cases, the extreme line segments are only partly drawn and are brought down vertically so that they meet at the mid points of the vertical left and right sides of first and last rectangles respectively.

Example 3 :

Draw a frequency polygon for the following data using histogram

 Marks0 - 1010 - 2020 - 3030 - 40 40 - 5050 - 6060 - 7070 - 8080 - 9090 - 100 Number of students5468574957

Solution :

Mark the class intervals along the X-axis and the number of students along the Y-axis. Draw a histogram for the given data. Now mark the mid points of the upper sides of the consecutive rectangles. The mid points are joined with the help of a ruler.

Note that, the first and last edges of the frequency polygon meet at the mid point of the vertical edges of the first and last rectangles.
