FINDING MISSING MEASURES IN SIMILAR TRIANGLES WORKSHEET

Problem 1 :

While playing tennis, David is 12 meters from the net, which is 0.9 meter high. He needs to hit the ball so that it just clears the net and lands 6 meters beyond the base of the net. At what height should Matt hit the tennis ball ?

Solution :

Step 1 :

Draw an appropriate diagram to the given information

In the above diagram,

BC  =  Height of the net

DE  =  Height of ball when hit

A  =  Point at where the ball lands

Step 2 :

Let us compare two corresponding angles of triangle ABC and ADE.

Triangle ABC

m∠A (Common angle)

m∠B (Right angle)

Triangle ADE

m∠A (Common angle)

m∠D (Right angle)

Because two angles in one triangle are congruent to two angles in the other triangle, the two triangles are similar.

Step 3 :

Since the triangle ABC and ADE are similar triangles,  corresponding side lengths are proportional.

So, we have

AD / AB  =  DE / BC

(AB + BD) / AB  =  DE / BC

Substitute the lengths from the figure.

(6 + 12) / 6  =  h / 0.9

18 / 6  =  h / 0.9

3  =  h / 0.9

Multiply both sides by 0.9

⋅ 0.9  =  (h/0.9) ⋅ 9

2.7  =  h

So, David should hit the ball at a height of 2.7 meters.

Problem 2 :

Jose is building a wheelchair ramp that is 24 feet long and 2 feet high. She needs to install a vertical support piece 8 feet from the end of the ramp. What is the length of the support piece in inches ?

Solution :

Step 1 :

Draw an appropriate diagram to the given information

In the above diagram,

AB  =  Height of the chair

CD  =  Height of the support piece

E  =  End of the ramp

Step 2 :

Let us compare two corresponding angles of triangle ABE and CDE.

Triangle ABE

m∠E (Common angle)

m∠B (Right angle)

Triangle ADE

m∠E (Common angle)

m∠D (Right angle)

Because two angles in one triangle are congruent to two angles in the other triangle, the two triangles are similar.

Step 3 :

Since the triangle ABE and ADE are similar triangles,  corresponding side lengths are proportional.

So, we have

DE / BE  =  CD / AB

Substitute the lengths from the figure.

8 / 24  =  h / 2

1 / 3  =  h / 2

Multiply both sides by 2.

(1/3) ⋅ 2  =  (h/2) ⋅ 2

2/3 ft  =  h

Step 4 :

Convert feet into inches.

Because 1 ft = 12 inches, we have to multiply by 12 to convert feet into inches.

h  =  2/3 ft

h  =  (2/3) ⋅ 12 inches

h  =  8 inches

So, the length of the support piece is 8 inches.

Problem 3 :

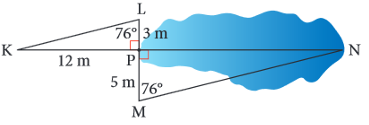

To find the length of a pond, a surveyor took some measurements. She recorded them on this diagram. What is the length of the pond


Solution :

In triangle KLP and PMN

∠LPK = ∠MPN = 90

∠KLP = ∠PMN = 76

Using AA, the triangles are similar.

Let x be the length of the pond.

3/5 = 12/x

3x = 12(5)

3x = 60

x = 60/3

x = 20 m

So, the length of the pond is 20 m.

Problem 4 :

Movie screens often have an aspect ratio of 16 by 9. This means that for every 16 ft of width along the base of the screen, there is 9 ft of height. The width of the screen at the Airport Cinemas is about 115 ft. The screen has a 16:9 aspect ratio. About how tall is the screen?

Solution :

When width of the screen = 16 ft

height of the scresn = 9 ft

When width of the screen is 115 ft, let x be the height of the screen.

16 : 9 = 115 : x

16/9 = 115/x

16x = 115(9)

x = 115(9)/16

x = 64.68

Approximately 64.7 ft.

Problem 5 :

Yolanda uses the shadow method to estimate the height of a flagpole. Her height of 5 feet casts a 4 foot shadow. At the same time, she finds that the school’s flagpole casts a shadow that is 21 feet long. Sketch a diagram and use a proportion to find the height of the flagpole?

Solution :

When height = 5 feet

length of shadow = 4 foot

Let x be the height of the flagpole

The flagpole which has length of shadow as 21 ft it creates the height as x.

5/4 = x/21

Doing cross multiplication, we get

5(21) = 4x

x = 105/4

x = 26.25 ft

So, the height of the flagpole is 26.25 ft

Problem 6 :

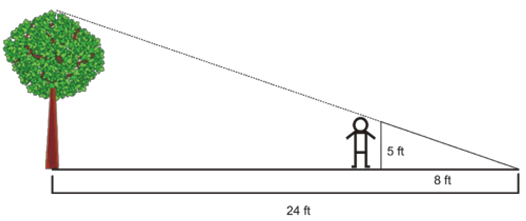

A tree casts a shadow that is 24 feet long. A person who is 5 feet tall is standing in front of the tree, and his shadow is 8 feet long. Approximately how tall is the tree?


Solution :

Let h be the height of the tree.

Comparing the corresponding sides

h/5 = 24/8

h = 3(5)

h = 15 ft

So, the height of the tree is 15 ft.

Kindly mail your feedback to v4formath@gmail.com

We always appreciate your feedback.
